CS-534: Packet Switch Architecture
Spring 2003		 Department of Computer Science
© University of Crete, Greece

0.3   Point-to-Point versus Shared Medium Links

[Up: Table of Contents]
[Prev: 0.2 Course Intro.]
[Next: 1.1 Serial-Parallel Xmit]

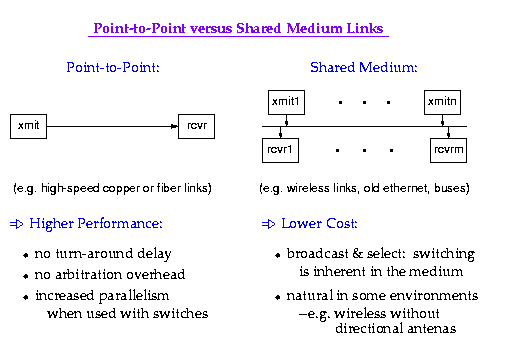

Point-to-Point and Shared-Medium: examples and advantages of each

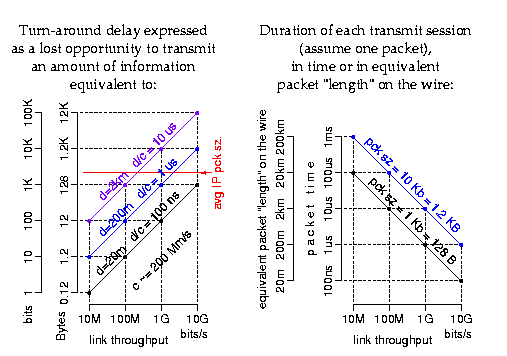

Shared medium link: turn-around overhead

how many bits is the distance d worth?

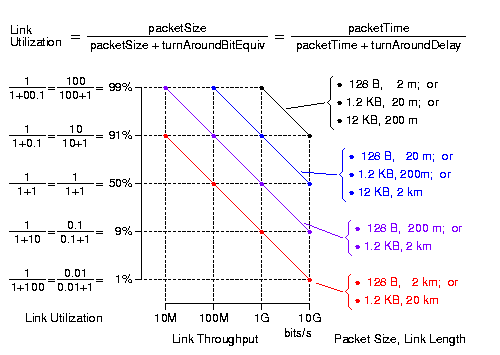

Link utilization for varying link throughput, link length, packet size

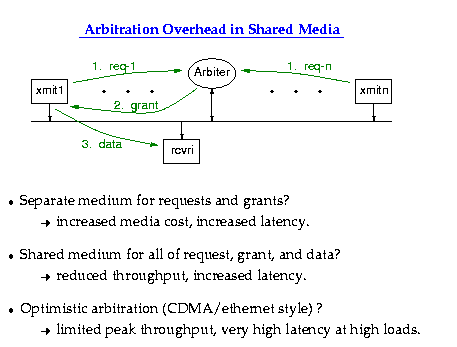

Arbitration Overhead

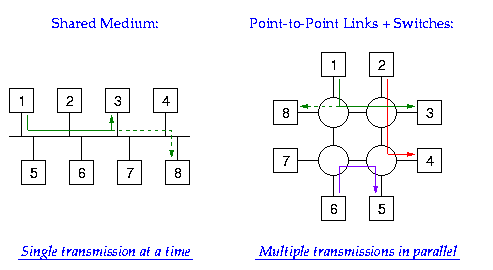

Single versus multiple parallel transmissions

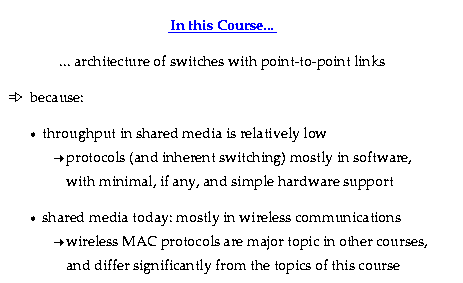

In this course... only switches with point-to-point links
