2. Basic Switching Notions

Subsections in the current document:

• 2.1 Circuit versus Packet Switching
• 2.2 Output Contention, Internal Blocking
• 2.3 FIFO Queueing and Head-of-Line Blocking
• 2.4 Store-and-Forward, Cut-Through
• 2.5 Multiplexing
• 2.6 Applications: Non-Blocking Switches using Multiplexing

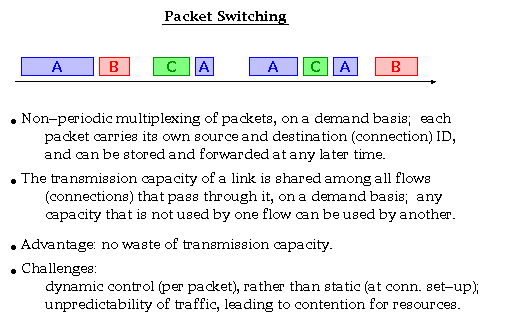

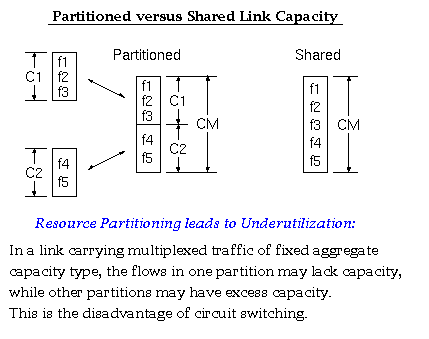

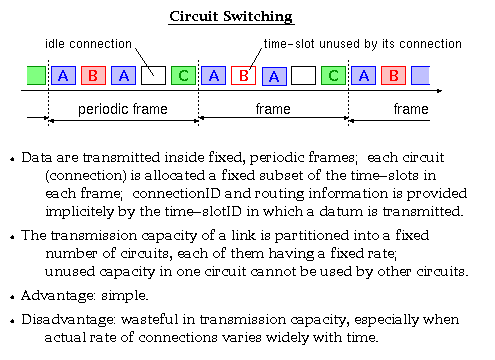

2.1 Circuit versus Packet Switching:

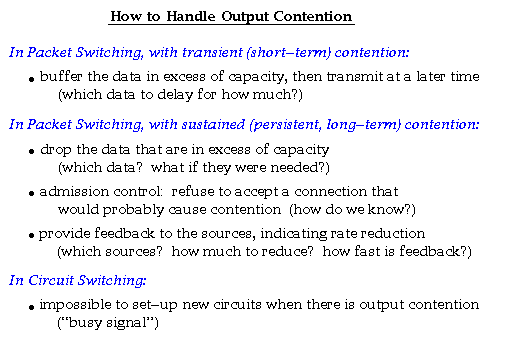

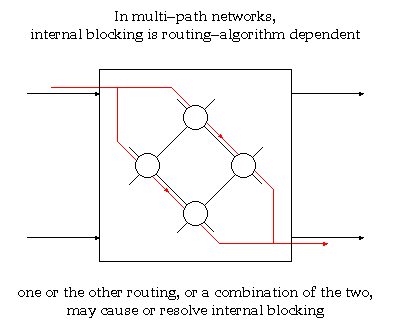

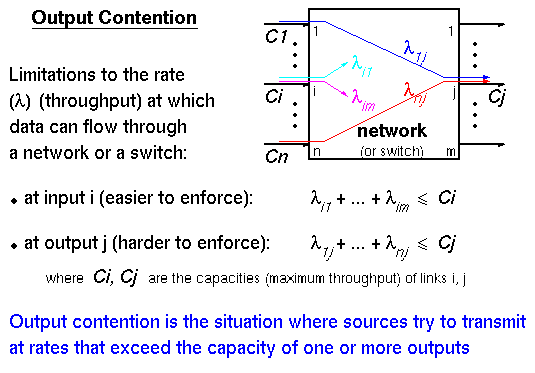

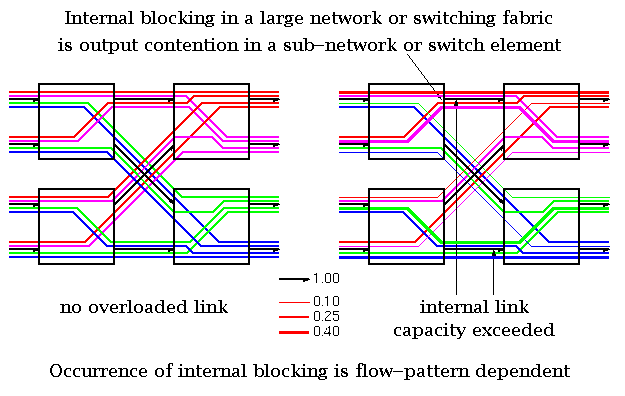

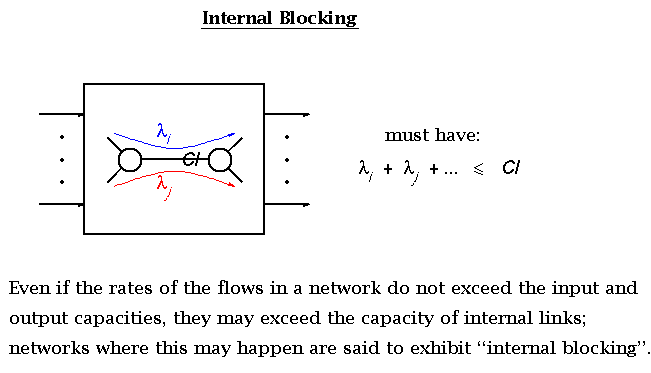

2.2 Output Contention, Internal Blocking:

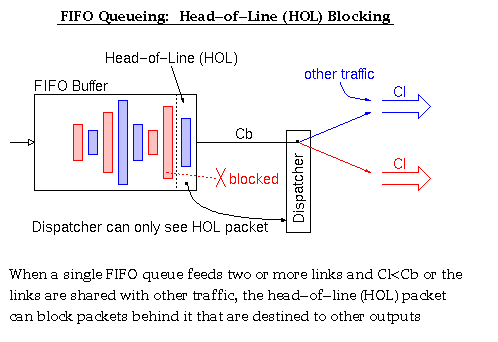

2.3 FIFO Queueing and Head-of-Line Blocking:

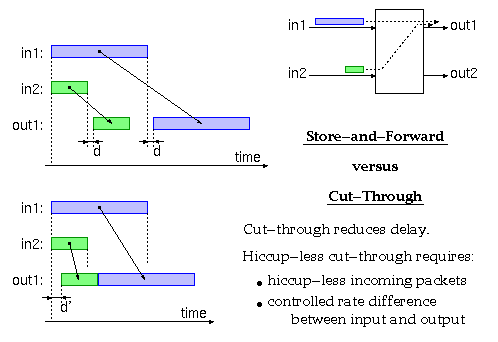

2.4 Store-and-Forward, Cut-Through:

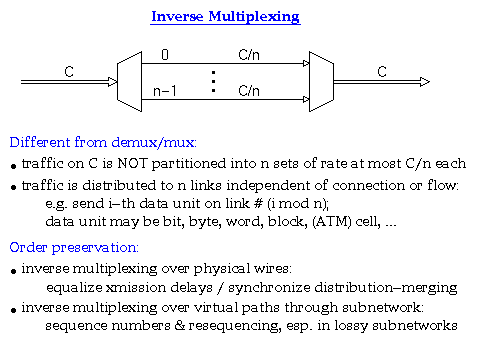

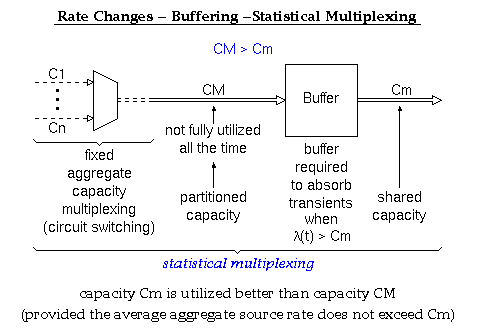

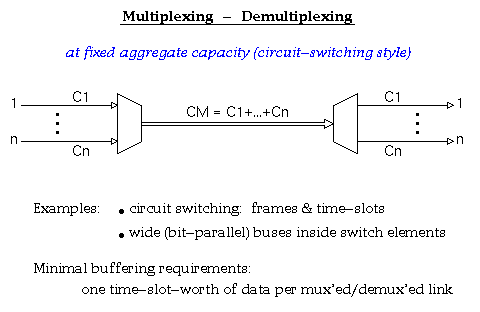

2.5 Multiplexing:

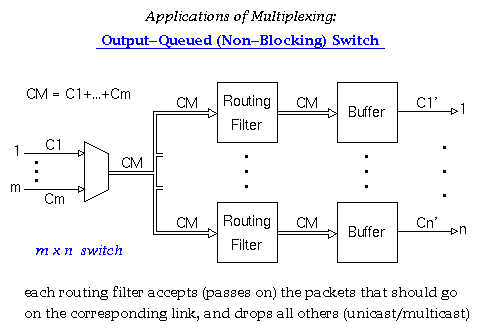

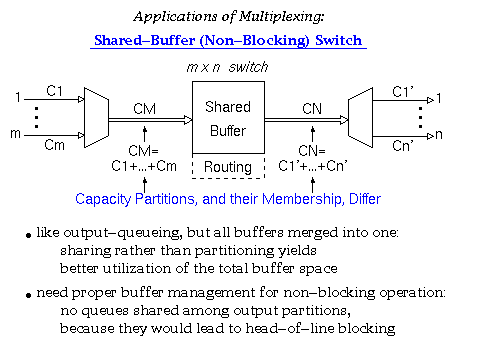

2.6 Applications: Non-Blocking Switches using Multiplexing
