CS-534: Packet Switch Architecture

2. Basic Switching Notions


Subsections in the current document:


2.1 Packet versus Circuit Switching:

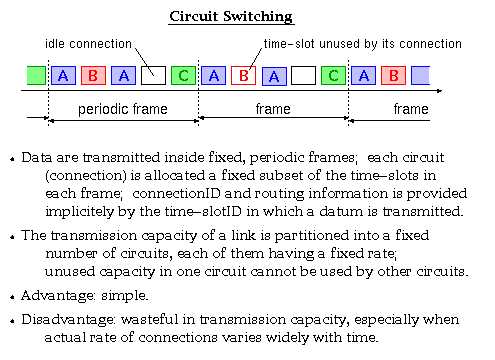

Circuit Switching

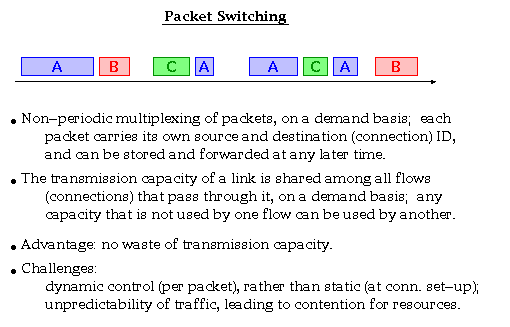

Packet Switching


2.2 Output Contention, Internal Blocking:

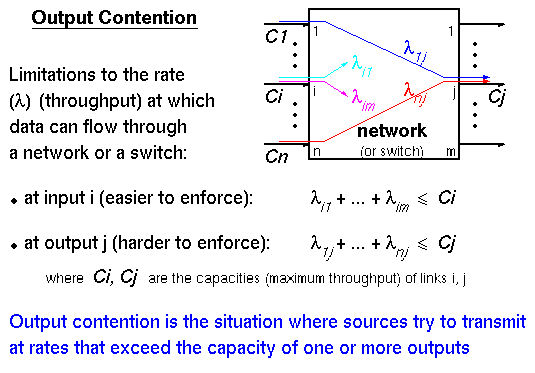

Output Contention


How to Handle Output Contention


Internal Blocking

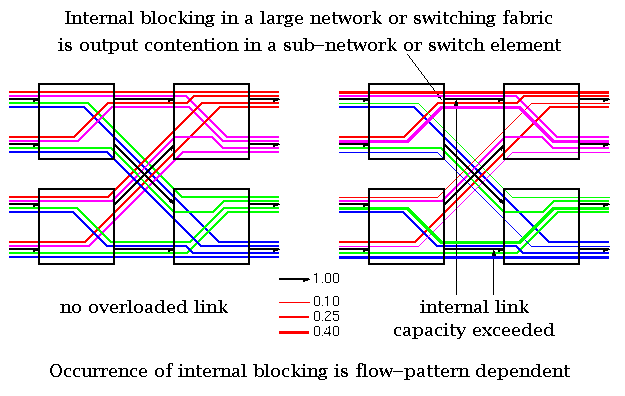

Flow Patern Dependence of Internal Blocking

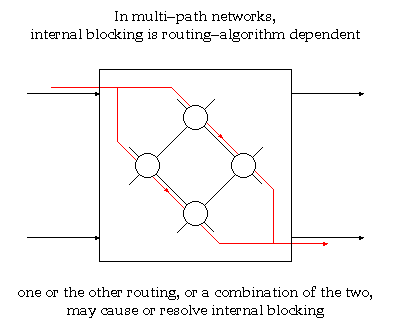

Multipath Networks: Routing Dependence of Internal Blocking


2.3 FIFO Queueing and Head-of-Line Blocking:

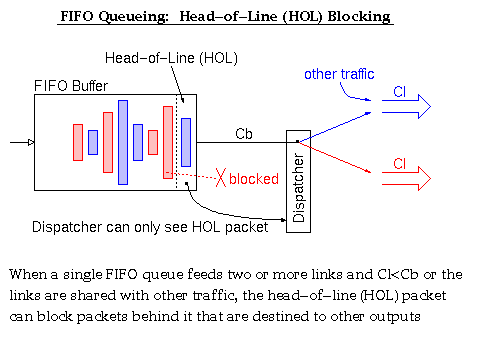

FIFO Queueing: Head-of-Line (HOL) Blocking


2.4 Store-and-Forward, Cut-Through:

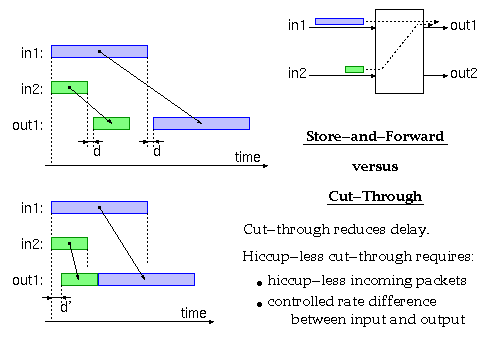

Store-and-Forward versus Cut-Through


2.5 Multiplexing:

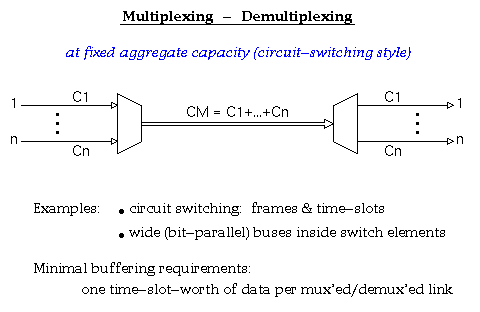

Multiplexing - Demultiplexing

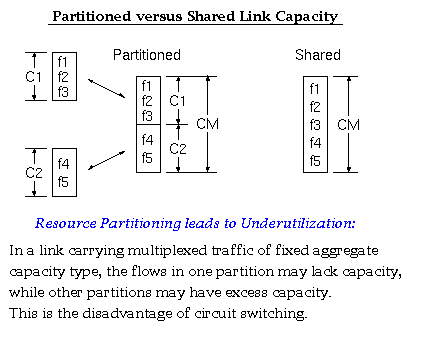

Partitioned versus Shared Link Capacity

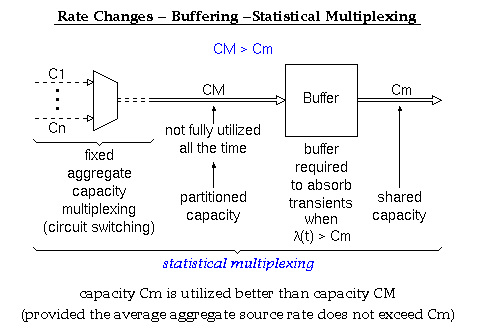

Rate Changes - Buffering - Statistical Multiplexing

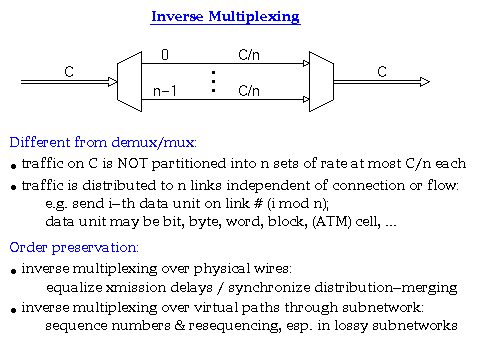

Inverse Multiplexing


2.6 Applications: Non-Blocking Switches using Multiplexing

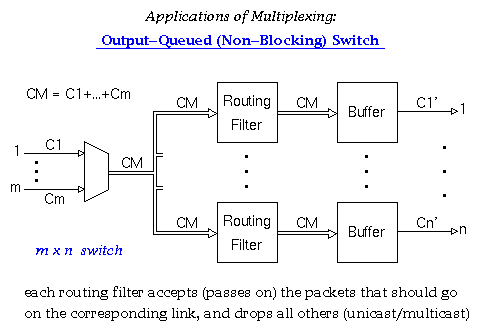

Output-Queued (Non-Blocking) Switch

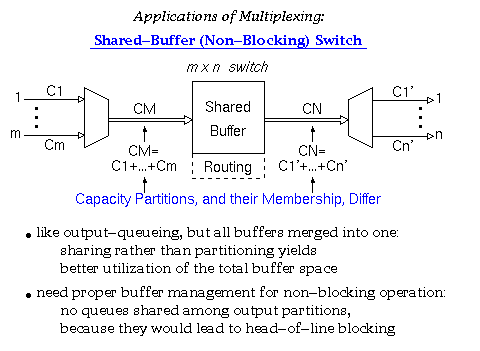

Shared-Buffer (Non-Blocking) Switch

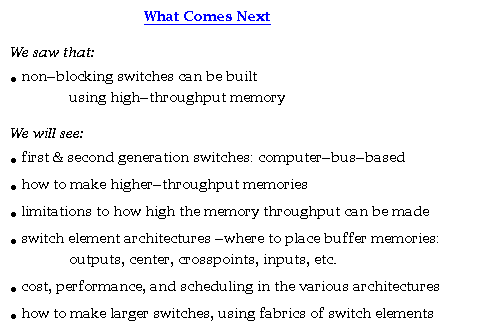

What Comes Next


2.7 Three Generations of Switch Architectures


According to Keshav's book, chapter 8, the packet switch architectures can be categorized in three generations:

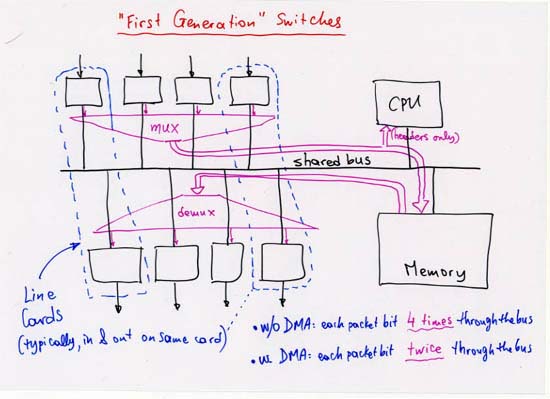

First Generation Switches

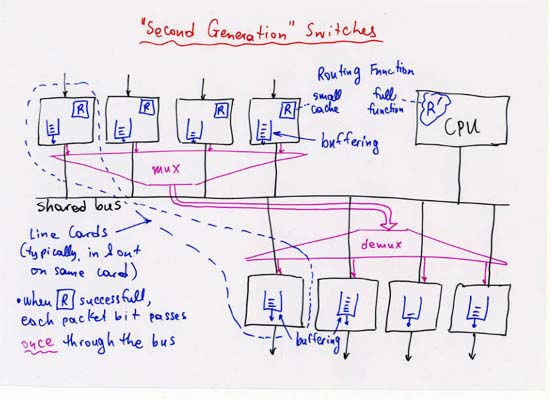

Second Generation Switches

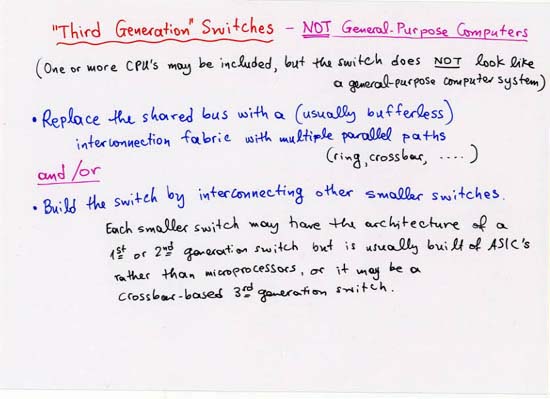

Third Generation Switches


2.8 Datapath and Control in Switches

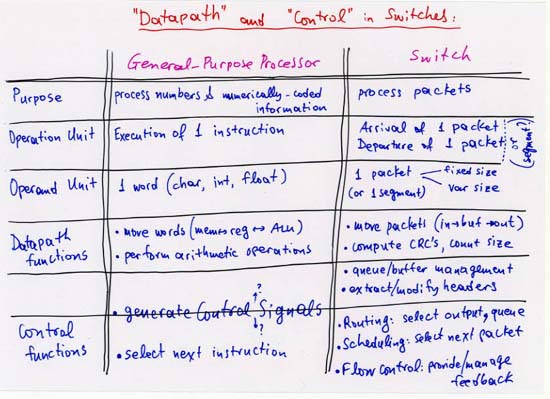

Datapath and Control in Processors and in Switches
