CS-534: Packet Switch Architecture

1. Links, Circuit Switching

Subsections in the current document:

1.1 Three Different Worlds now Converging

Three Different Worlds now Converging

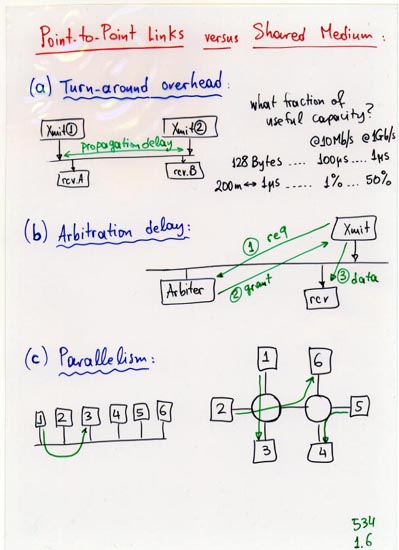

1.2 Point-to-Point Links versus Shared Media

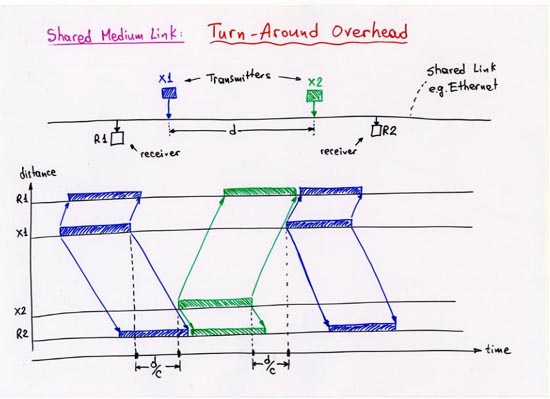

Shared medium link: turn-around overhead

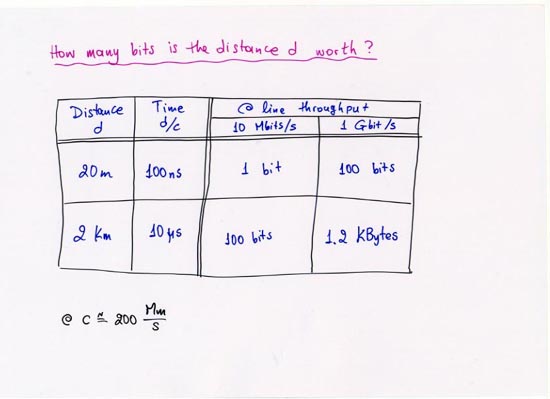

how many bits is the distance d worth?

Shared medium link: arbitration delay, lack of parallelism

1.3 Serial versus Parallel Transmission

Distance versus transmission type

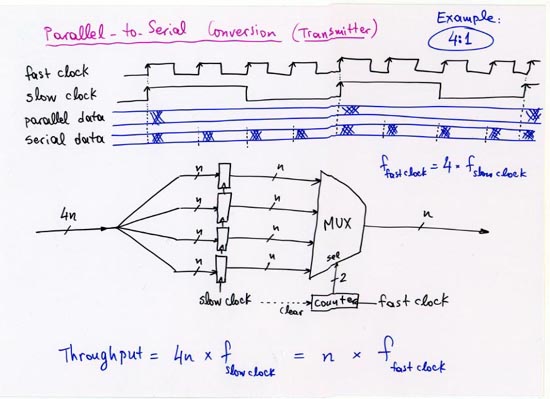

Parallel to serial conversion (transmitter)

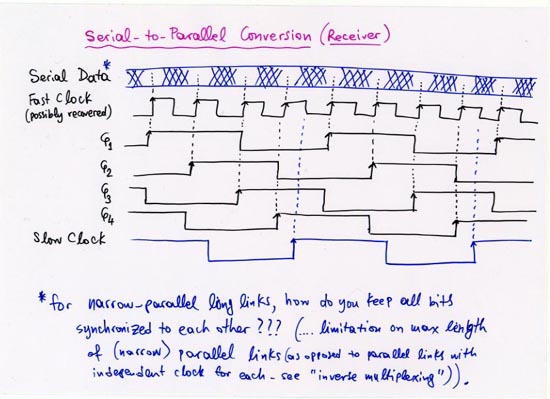

Serial to parallel conversion (receiver) -clock phases

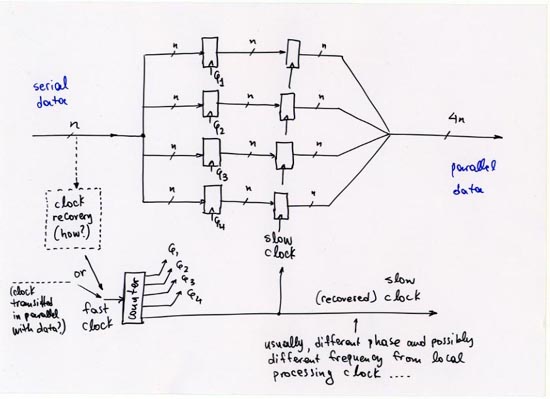

Serial to parallel conversion (receiver) -datapath

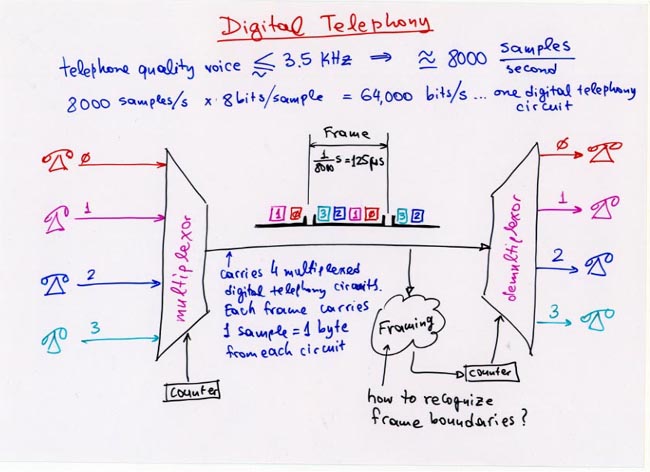

1.4 Digital Telephony, Circuit Switching

Reading Assignment:
Read section 8.2 (Circuit Switching), pp. 162-175, from the book (S. Keshav: "An Engineering Approach to Computer Networking").

Sampling rate, frames, multiplexing, demultiplexing

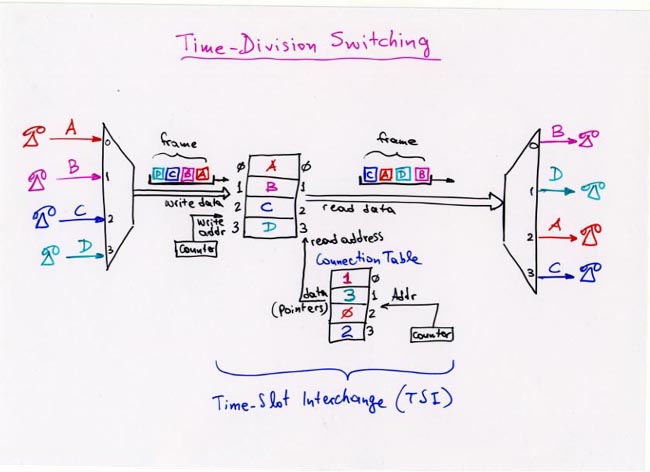

Time-Division Switching - Time Slot Interchange

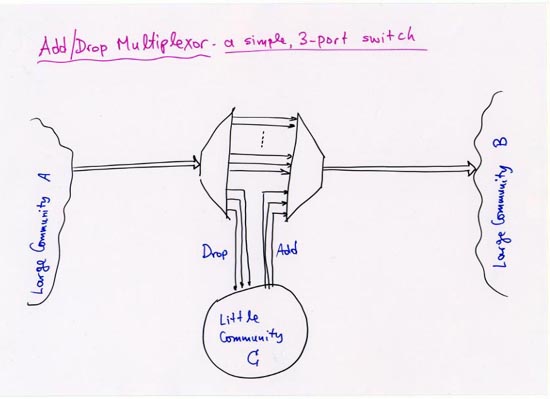

Add/Drop Multiplexor: a simple, 3-port switch

Space-Division Switching, Crossbar, TST switch

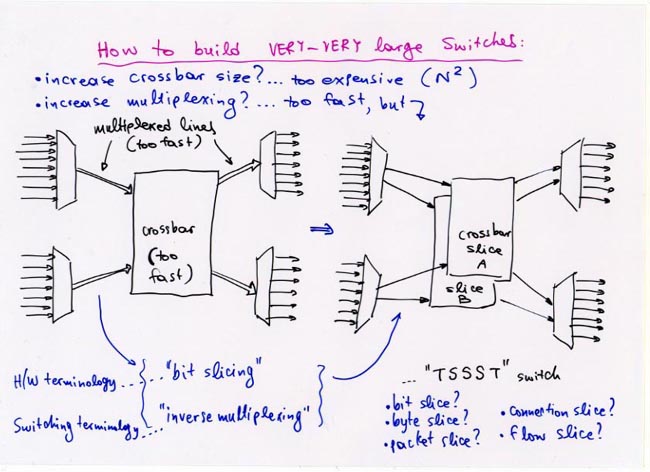

Multi-stage switches, TSSST, inverse multiplexing
